CRAB represents a system covering all steps of processing of a solid target irradiated at a cyclotron. Using a unique design, it allows dissolution of the produced radiometal, radiochemical separation, formulation, and simple labelling. Together with various accessories, CRAB can serve as a comprehensive radiochemical system enabling hand-free management of the whole production process, including automatic target loading to the cyclotron and transportation of the irradiated target to a hot cell.
- Fully automised system to increase reproducibility and to minimise personnel dose intake
- Separation process based usually on solid phase extraction (SPE), finished by formulation of the separated radionuclide into a desired solvent
- Easy adjusting of the final activity concentration according to the particular needs
- System driven by PLC and I/O cards, communication with PC via Ethernet cable
- External cyclotron target chute enabling hand-free loading of irradiated target into the shielding container as an option
CRAB2RABBIT is a unique solution for production of cyclon medical radiometals and their compounds.
This solution covers all the steps from the target handling up to labelled compound.
CRAB2RABBIT provides automated, fully remote-controlled procedures that exclude manual intervention during the target processing and labelling/separation steps.
CRAB2RABBIT fully automated process covers:
- preparing of a solid target for irradiation
- transport of the target to a cyclotron
- loading of the target to a target holder
- unloading of the irradiated target and transport to a hot cell
- loading of the target to the automated module that provides radionuclide´s separation and labelling

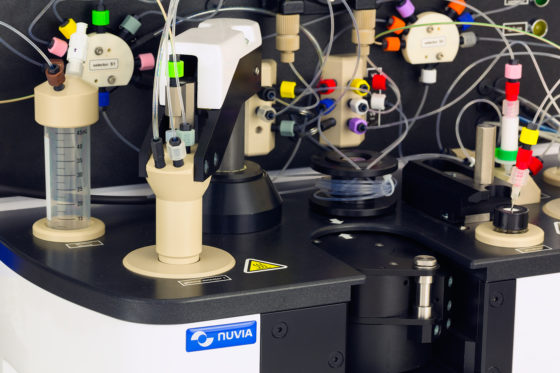

- Two reactors, two selectors, a peristaltic pump, 3/2 way valves, and a separation column
- Up to four positions for the uploading of solvents into the first reactor or to the SPE column regarding separation steps
- Three positions for the uploading of solvents to the reactor R2 that may be used for formulation or for simple labelling steps
- Inbuilt solid phase extraction column for the separation driven by peristaltic pump and solvents
- Wide variety of processable radionuclides such AS 61Cu, 64Cu, 68Ga, 89Zr, etc.
- Module dimensions app.50 x 50 x 50 cm
- External power supply 230 VAC / 24 VDC
- Inlet for pressure of air / noble gas up to 7 bar
- 3 GM tubes for high activity measurement
- Allows processing of high incoming activities in order of hundreds of GBq
